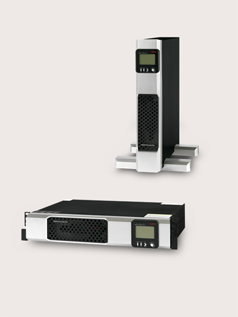

Protect B. Pro

Tower/Rackmount-UPS

line-interactive (VI)

750 VA 1800 VA
1000 VA 2300 VA
1400 VA 3000 VA


With its increased power factor of 0.9lag the Protect B PRO belongs to the most efficient line-interactive UPS systems. The parallel operation of USB/RS232 interface and the extension slot enables more communication options. Protect B Pro can be configured via the operator panel. The innovative folding mechanism allows batteries to be changed without disconnecting the UPS.



KEY FEATURES



  • Modern VI (line interactive) protection technology with sinus-shaped output voltage
  • Low operating costs through high efficiency, power factor 0.9lag
  • Compact shape, flexible use through combined design tower / rack, rotary screen
  • Surge protection (RJ11 / RJ45) for telephone, fax, modem and network
  • Configuration directly on the LCD
  • Full display of the essential parameters on the screen, e.g. the remaining runtime in minutes
  • Intelligent monitoring system with USB and RS232 interface; parallel operation of USB / RS232 and extension slot is possible
  • 24 months standard warranty
    Additional warranty extensions up to 60 months available



DESCRIPTION



Higher efficiency


The Protect B. PRO achieves more than 30% higher power in comparison to conventional uninterruptible power systems, due to it‘s new power factor rating of 0.9 lagging across it‘s operating range.



Display


The display shows several parameters: input, UPS mode and output. Three LEDs at the top of the display indicate the current operating mode. From the control panel the user is able to configure the UPS settings and activate an audible alarm.



Battery management


The battery management system is able to differentiate between initialization during setup, the battery charging phase (temperature compensated) and the standby phase. This enables the system to extend battery lifetime as there is a decrease of pole corrosion.



Communications options


Communication options are provided by several interfaces including programmable potential-free contacts, emergency power off switch, RS232, USB and an extension slot that can be used in parallel mode.



Autonomy Times


Autonomy
