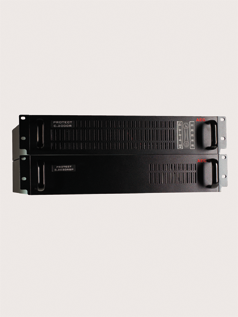

Protect C. Rack
Rackmount UPS
online / double-conversion (VFI)
3000 VA
The rackmount UPS is designed for mission critical applications such as sensitive networks, small computer centers, intranet/ internet servers, telecom and industrial applications. Protect C. Rack employs VFI UPS topology to protect against all grid disturbances. Integrated circuits reduce the number of electrical connections and components. An automatic bypass provides security during overload.
KEY FEATURES
- VFI-topology protects against all mains power disturbances
- Microprocessor control/ DSP guarantees highest availability
- Sine wave shaped current consumption (HF PWM with IGBTs)
- Automatic bypass
- Expansion slot for extension cards SNMP/ rely card / potential free contacts
- 24 months standard warranty
Additional warranty extensions up to 60 months available
Autonomy Times
| in min. | C.3000R + 1x C.2030R BP |
C.3000R + 2x C.2030R BP |
C.3000R + 3x C.2030R BP |
C.3000R + 4x C.2030R BP |
C.3000R + 5x C.2030R BP |
|---|---|---|---|---|---|
| 450VA | 78.5 | 172 | 278 | 400 | 489 |
| 750VA | 46 | 109 | 172 | 241.5 | 315 |
| 1500VA | 16 | 49 | 84.5 | 113.5 | 149 |
| 2250VA | 9 | 27 | 49.5 | 71.5 | 97.5 |
| 3000VA | 5 | 16.5 | 29.5 | 48 | 60 |
Protect C. Rack – Versions
| Product name | EAN | Part number |
|---|---|---|
| Protect C.3000 R | 4026245038482 | 6000003848 |
| Protect C.3000 R S (with strong rectifier) | 4026245043448 | 6000004344 |
| Protect C.2030 R BP | 4026245038529 | 6000003852 |
