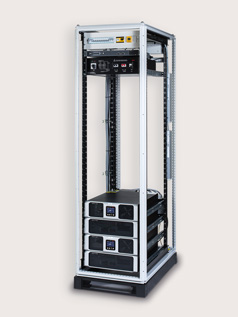

PRS-System

Rack solution with a 6-20 kVA UPS including rack cabinet, power distribution, UPS communication and an uninteruptible power supply as single, parallel or A/B busbar concept.

The PRS system (power rack solution system) has been specially developed for users in the SME sector. Medium-sized companies in particular, such as law firms and system integrators, often need a reliable system which is available at short notice to provide an uninterruptible power supply. The compact PRS system from AEG Power Solutions is ready to use immediately and requires minimal installation work. The efficient, high-performance UPS Protect D.6000 or Protect D.10000 is integrated into the rack in advance. A huge range of configurations, set up and tested according to VDE guidelines, ensure ease of use and provide a quick return on investment (ROI).


KEY FEATURES



  • Pre-defined solutions
    • 6 or 10 kVA (Protect D.6000/D.10000) in individual version or redundancy
    • up to 20 kVA (2 x Protect D.10000) in parallel operation
  • Can be set up as
    • individual system or A+B bus bar
    • parallel system with parallel control panel
  • Minimal installation work in the event of subsequent internal expansion
  • Transfer switch optional (for consumers with only one infeed)
  • UPS with integrated battery system
  • Can be expanded with up to 4 battery unitsper UPS to achieve longer bridging times
  • Sub-distribution with fuse protection unit
  • Differential current monitoring
  • Communication via SNMP and sensor elements
  • Standard external manual bypass enables maintenance
  • Can be supplied with additional rack extensionand pre-mounted distribution units (PDUs)
  • Units tested according to VDE guidelines
