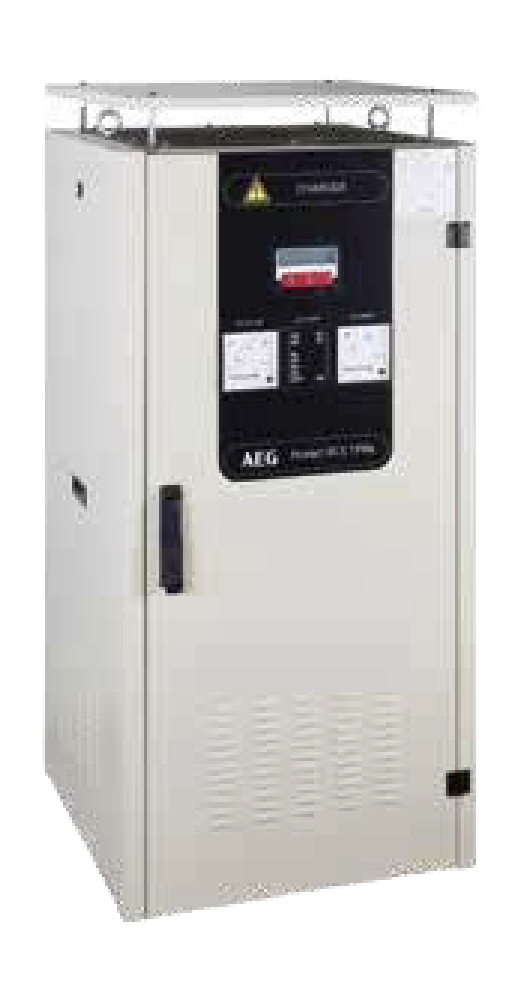

PROTECT RCS TPRe TD

The Protect RCS TPRe TD battery charger system has been developed and designed to provide high reliability power supply and battery charging capability. The Protect RCS TPRe TD is a thyristor-controlled battery charger suitable for charging nickel-cadmium or lead-acid batteries while supplying DC loads. Its design is optimized for T&D (Transmission and Distribution) applications.

The rectifier is fitted inside a very compact cabinet and can be equipped with optional electrical and mechanical items in order to comply with most of the T&D specifications. It can also be connected to an inverter in order to deliver a safe AC supply.

The cabinets are floor mounted and can be customized to meet specific environmental requirements. The batteries are mounted in free-standing racks or cabinets.

Typical applications

• Power generation

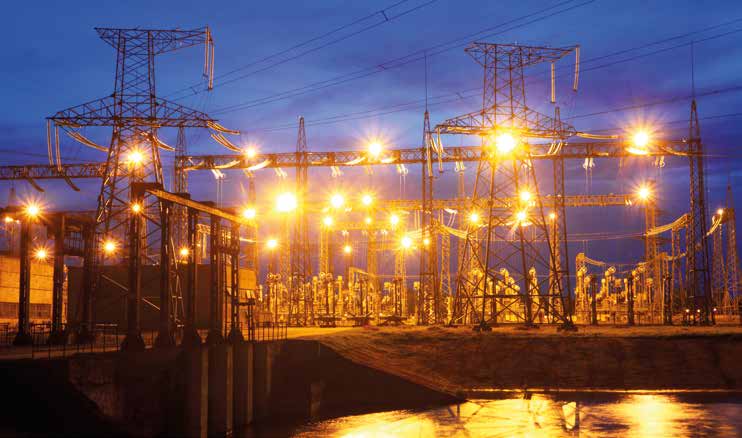

• Transmission & Distribution

Features

• Input isolation transformer, isolated DC output with built-in earth fault detection
• Standard system configurations
• Heavy industrial design
• Compact cabinet with natural cooling for most power ratings
• Built-in protection
• Customer cable connections on terminals
• Digital processing and setting of all parameters
• Monitoring of all parameters via the front panel display
• Built-in intelligent battery management system
• Temperature-compensated charge voltage regulation
• Manual or automatic high rate charge
• Parallel operation for redundancy and power increase
• Alarm and event logger, with a date and time-stamped event log memory
• Large communication facility options

Benefits

• All chargers and options are identified with part numbers to permit reduced lead times
• Option list available for ratings in order to meet all T&D market specifications
• Compatible with common industrial battery types with easy parameter adjustment
• Field proven high reliability with microprocessor-controlled thyristor technology
• Ease of installation, start-up & maintenance, low Mean Time To Repair (MTTR)
• International service support

Standard system

The Protect RCS TPRe TD range of battery chargers has been preconfigured with some of the most commonly requested features built-in as standard. These systems are available “off-the-shelf” with standard drawings and user documentation.

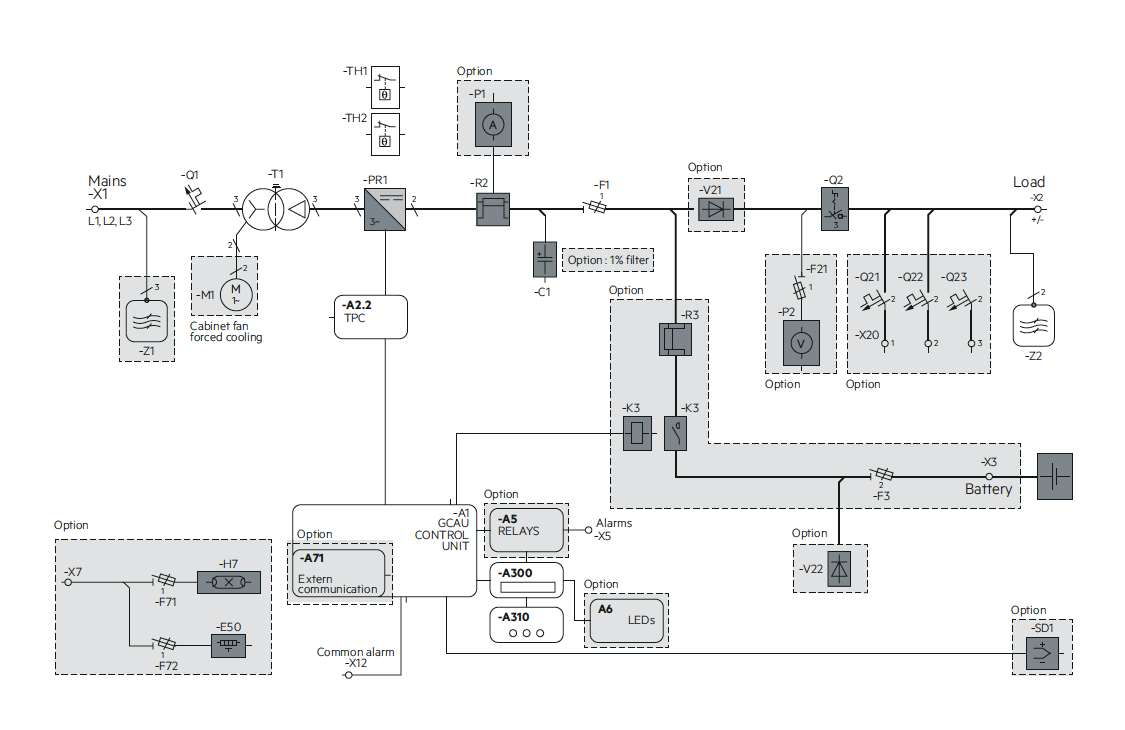

Standard configuration

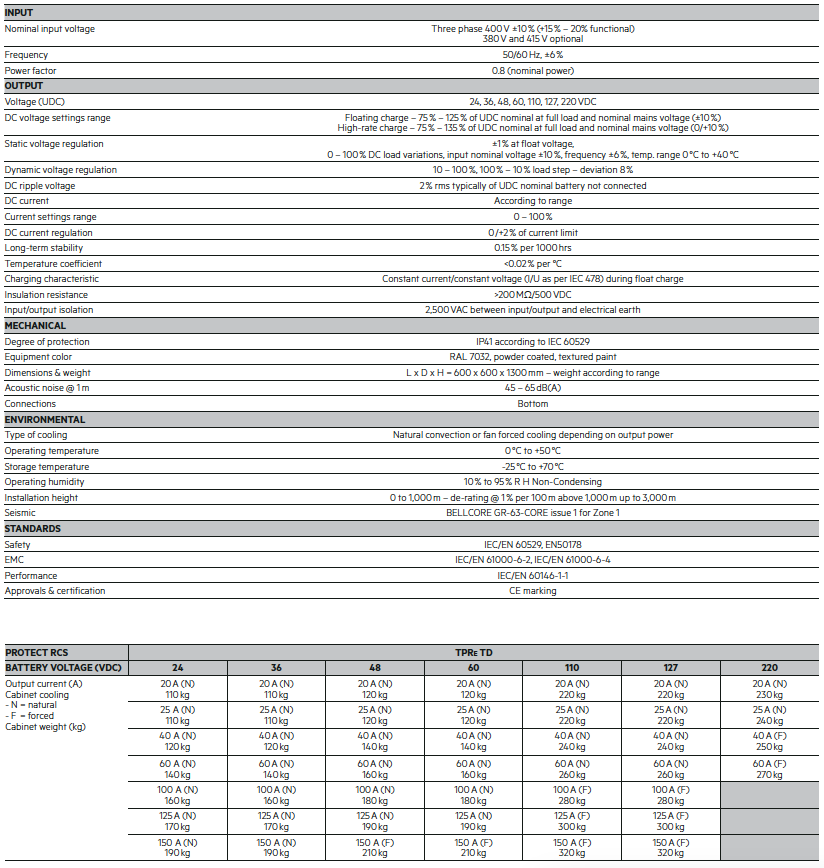

• Single systems from 24 VDC to 220 VDC and 20 A to 150 A
• Internal rectifier input breaker Q1
• 6-pulse rectifier bridge with input isolation transformer
• Digital control card GCAU
• Output filter C1 ripple voltage <2 % RMS without battery
• Rectifier F1 fuse and rectifier shunt R2
• DC output isolation switch
• Multi-functional LCD with 2 LEDs indicates the system status
• Output DC cable drop compensation
• Tropicalized control electronic boards
• Low smoke – halogen free wires and cables
• Common fault remote alarm
• Floor mounted cabinet with external IP41 protection and IP20 with open doors
• Cabinet color RAL 7032
• Power and control cable marking
• Door able to open to 180° with key lock
• Bottom cable entry
• Input/output load terminals X1 and X2
• Standard rating plate

Options

The standard system can be enhanced by additional options already integrated into standard drawing packages and user documentation.

All documentation is available for download on the AEG Power Solutions web site, download section.

To provide exact solutions for each application, we offer a wide range of options.

System

• 3 x DC distribution breakers with spare capacity
• Blocking diode for paralleling
• 1% DC output filter for all
• 0.1% DC output filter for 48V rating
• Battery reverse polarity protection
• Battery output including battery shunt, protection by fuse and low voltage disconnect contactor
• Battery protection box including fuses and current measurement

Alarms/signaling/measurement

• LED alarm indicators in front panel
• Relay cards (8 free contacts each)
• Additional analog meters
• Temperature charging compensation sensors & cables

Communication

• RS485 Modbus RTU protocol
• TCP/IP interface for SMTP or Modbus
• Protocol converter IEC 61850
• Monitoring and management software

Mechanical

• Interior cabinet light & cabinet heater
• Lifting eyes
• Hardcopies of drawings, operation manual and test report
• Cabinet with IP42 protection degree
