QC60/90/120
Fast-charge up to 120kW
Multi standard (CHAdeMO, CCS and AC Type-2 compliant)
Simultaneous charging for all outputs
Ready for PnC (Plug-n-charge)
Noise reduction operative modes
TFT colour display (for user interface and publicity)
Network integration (OCPP or proprietary protocol)
Built-in communications (4G; LAN; Wi-Fi)
LMS integration
Product description

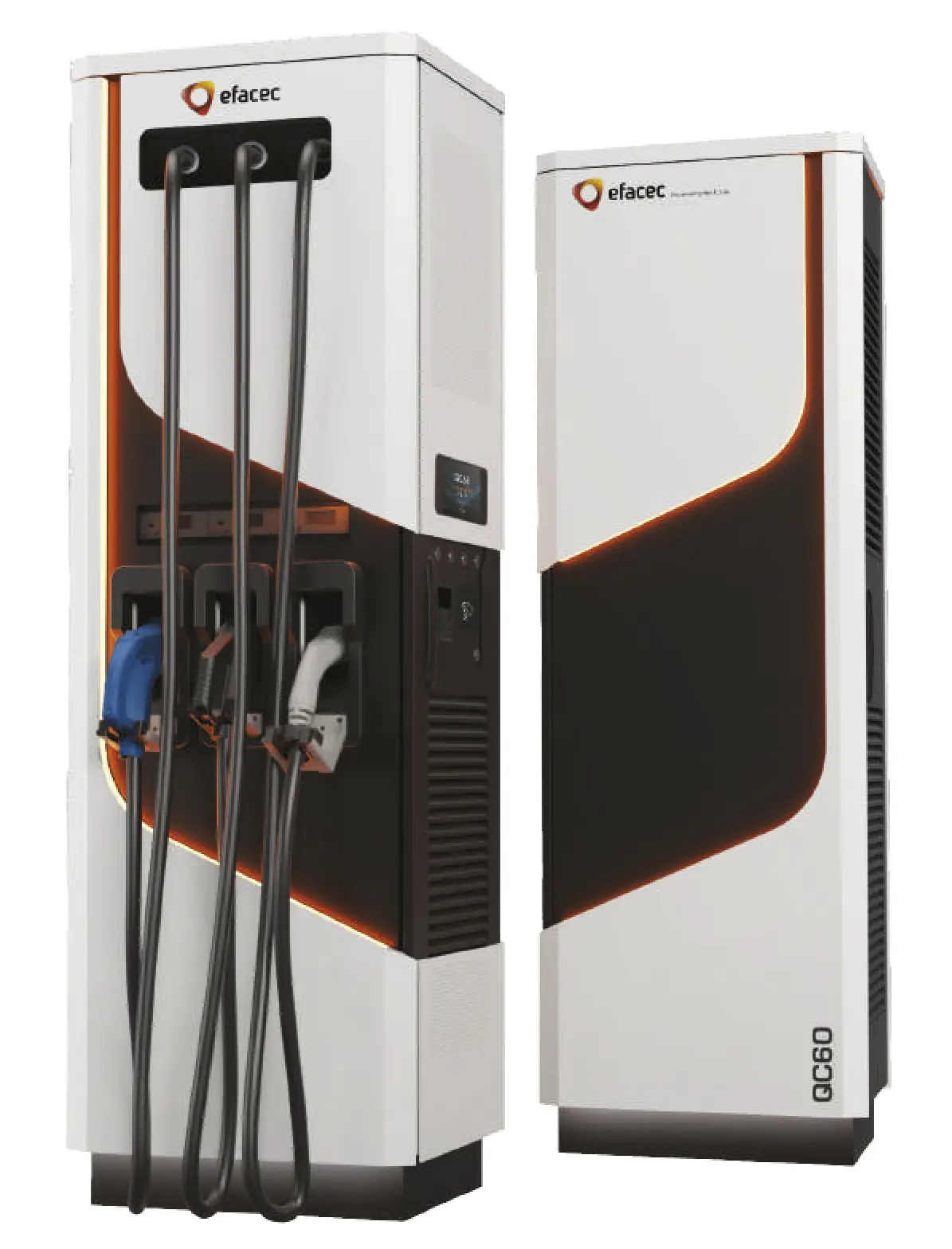

At Efacec, we anticipate breaking through solutions in electric mobility. Our Fast chargers from 60kW to 120kW are Quick Charging stations able to charge all EVs with CHAdeMO, CCS and AC Type-2 (fast) charging compliance.
After user identification (if authentication is required), by simply choosing the charging standard compatible to your vehicle and coupling the charger’s output plug to the EV, you will have a fast, secured and proven charging process. The battery charging status is displayed and the charging cycle finishes by itself or can be terminated by an user command.
Different output options are available like CCS, Chademo or AC, with different combinations like CCS-CHA-AC.
With a fresh new design we expect to meet the needs of future high voltage EVs.
AC and DC plug-in charging systems
Main features
- Multiple standards
- Multiple outputs (up to 3 DC outputs)
- Simultaneous charging in all outputs
- Load balancing
- Ready for PrC
- AC power up to 43kVA
- High efficiency > 95 %
- Noise reduction operation modes
- Compact and simple plug & play installation
- Standalone or network integration
- Local and remote control and monitoring
- C4 corrosion protection
- Customizable
Gallery

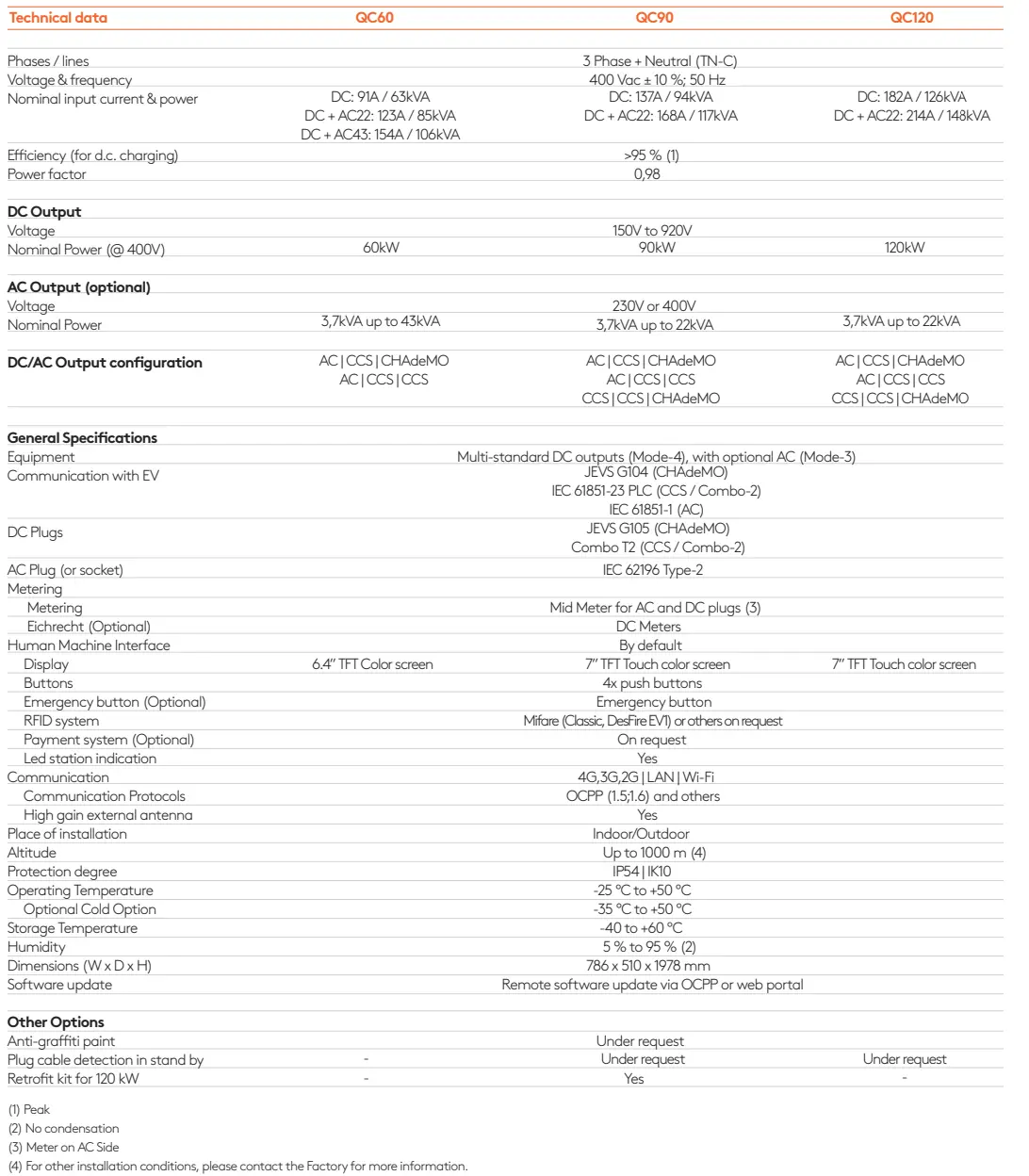

Technical Specifications
