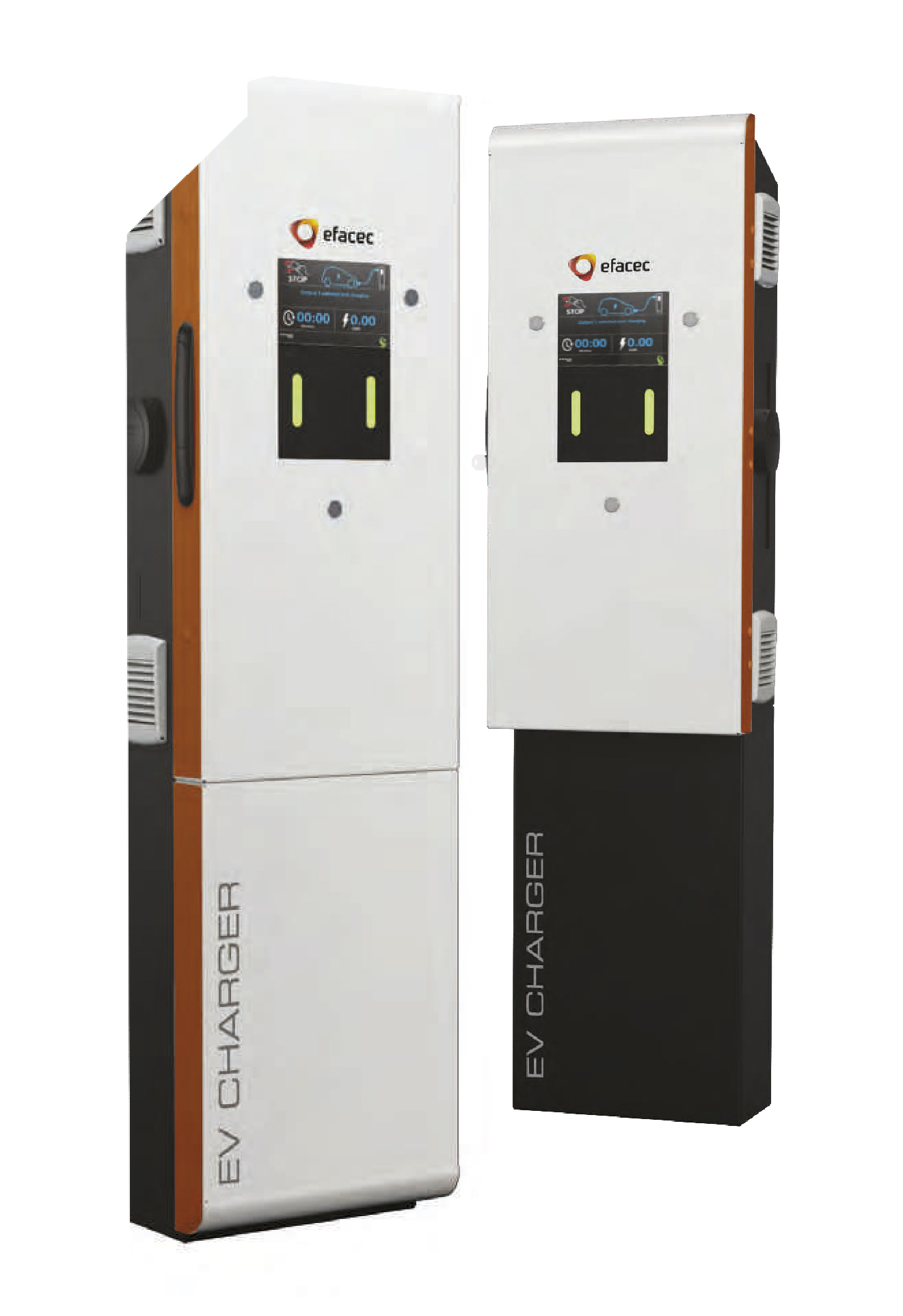

Public Charger G3
Charge all Mode-3 vehicle
Pedestal or wall-mount installation
AC output power up to 22kVA
Simultaneous charging of 2 vehicles
TFT colour display
RCD and breaker included
Network integration (OCPP or proprietary protocol)
Built-in communications (2g ; 3g ; 4g ; LAN; Wi-Fi)
Product description
The Public Charger was designed to have 2 outputs, Mode-3 charging socket (power rating 22kVA), able to charge any electric vehicle compatible with IEC 61851.
Using easy installation procedures and requirements, the Public Charger can be wall-mounted or pedestal-mounted, allowing versatile installation options. The Human Machine Interface (HMI) with TFT display and RFID reader was designed to control the 2 build-in outputs.
Each Efacec Public Charger can be integrated in a charging infrastructure network and its operation and status is controlled by the central management system.
Main features
- Multiple outputs (Mode-3)
- Multiple powers (up to 22kVA)
- Versatile installation options
- Aluminum enclosure
- Simple plug & play installation
- Local and remote monitoring and control
Gallery

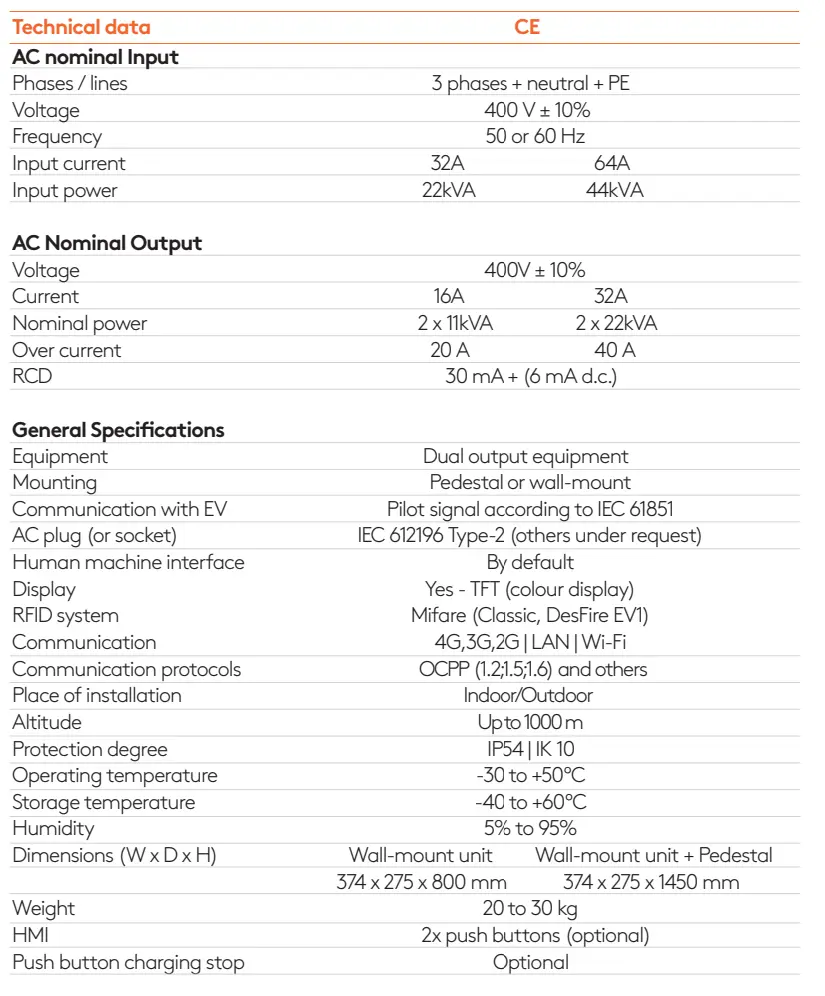

Technical Specifications
