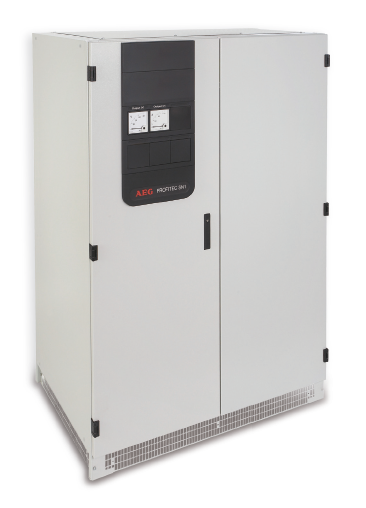

Profitec SN1

Szoftvermentes egyenirányító

The Profitec SN1 is a 100 % analog charger. All regulation and monitoring PCBs (built up in SMD method) contain no software and no programmable components or devices. The invention of a 100 % free-of-software rectifier is due to the security of DC power supply and new requirements for safety and qualification processes.

Input:
380 / 400 / 415 / 500 / 690 V 3-phase

DC-Output:
24 V 100 – 2500 A
60 V 63 – 630 A
110 V 63 – 630 A
220 V 40 – 1250 A

KEY FEATURES

No software or programmable devices
Seismic-proofed technology
Forced or natural air cooling
Secure DC supply in any case of input voltage variation
Top or bottom entry
Maximum reliability
High availability / MTBF
Design lifetime >30 years
Designed for use in harsh environments
Easy maintenance via diagnostic device
160 % input overvoltage threshold

OPTIONS

Overvoltage limiter (Forsmark-event)
In case of input voltage variation, independent of the input voltage gradient, the duration and its maximum value, the patented overvoltage limiter reduces the value of the DC output voltage to less than 115 % of the nominal DC voltage. Th overvoltage detection is a self-acknowledging fault.
Parallel mode (for output current extension or redundancy)
Diagnostic device for annual checks as required by NPPs
Forced cooling for ambient temperatures up to 50 °C without de-rating
Design as +/- system
Higher IP rating
Battery feeder cubicles, seismic-proofed
Battery symmetry monitoring
Battery charging circuit monitoring

Profitec_SN1_diagram_EN
